Study Overview
The City of Thorold is initiating improvements to the existing rail trail between Marlatts Road and approximately 120 m west of Rice Road to the Town of Pelham municipal boundary (see key map). A municipal class environmental assessment study is not required for this work.
The key aspects of this work will include but are not limited to the following:
Upgrade the gravel trail to a multi-use path
Realign trail crossings at roadways (as required)
Identify locations for trail signage
Prepare preliminary design drawings
Trail Design

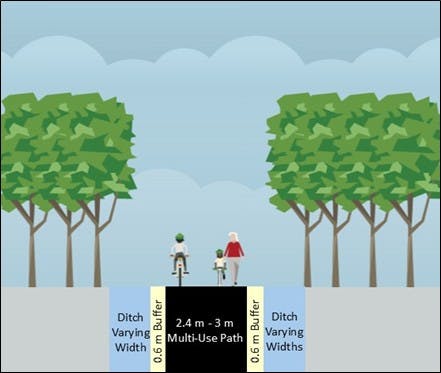

The trail was designed based on the requirements outlined in the City of Thorold’s Active Transportation Strategy, OTM Book 18, and TAC Manual. The existing gravel path will be upgraded to a paved multi-use path that is generally 3 m wide but may be narrowed to 2.4 m in constrained areas (e.g., minimize impacts to utilities or natural environmental features).

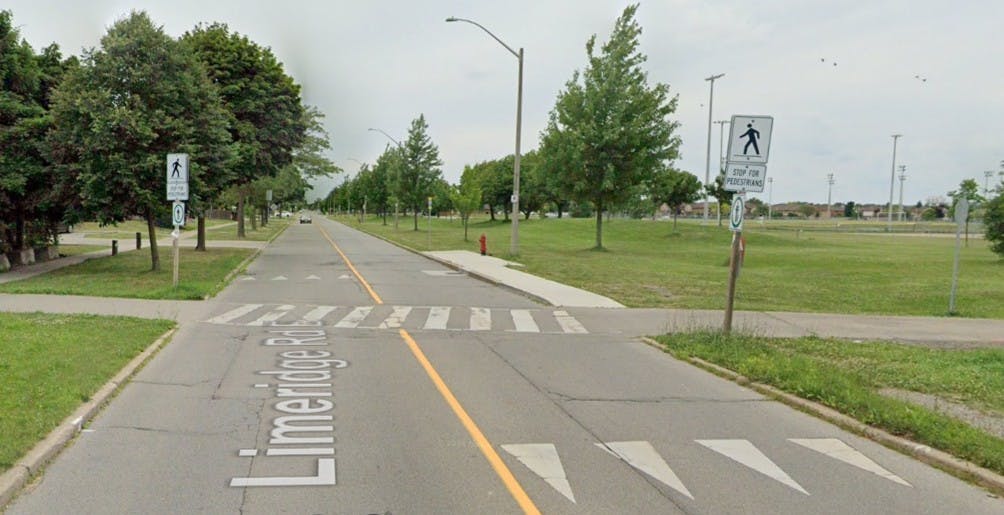

There are seven (7) trail crossings along the trail. All trail crossings have been redesigned with formal pavement markings and to cross the road at an improved angle (e.g., perpendicular to the road). Following a review of the traffic volumes along each road, it was determined that six (6) of the trail crossings will be uncontrolled crossings while the trail crossing at Merritville Highway will be a controlled (signalized) crossing. It is anticipated that all trail crossings will be lit and will be confirmed during the subsequent Detailed Design phase.
As part of the study, the project team will be reviewing potential signage locations and rest stops / street furniture (e.g., benches), which will be confirmed during the subsequent Detailed Design phase. Lighting requirements along the trail will be determined during the subsequent Detailed Design study.
Study Overview
The City of Thorold is initiating improvements to the existing rail trail between Marlatts Road and approximately 120 m west of Rice Road to the Town of Pelham municipal boundary (see key map). A municipal class environmental assessment study is not required for this work.
The key aspects of this work will include but are not limited to the following:
Upgrade the gravel trail to a multi-use path
Realign trail crossings at roadways (as required)
Identify locations for trail signage
Prepare preliminary design drawings
Trail Design
The trail was designed based on the requirements outlined in the City of Thorold’s Active Transportation Strategy, OTM Book 18, and TAC Manual. The existing gravel path will be upgraded to a paved multi-use path that is generally 3 m wide but may be narrowed to 2.4 m in constrained areas (e.g., minimize impacts to utilities or natural environmental features).
There are seven (7) trail crossings along the trail. All trail crossings have been redesigned with formal pavement markings and to cross the road at an improved angle (e.g., perpendicular to the road). Following a review of the traffic volumes along each road, it was determined that six (6) of the trail crossings will be uncontrolled crossings while the trail crossing at Merritville Highway will be a controlled (signalized) crossing. It is anticipated that all trail crossings will be lit and will be confirmed during the subsequent Detailed Design phase.
As part of the study, the project team will be reviewing potential signage locations and rest stops / street furniture (e.g., benches), which will be confirmed during the subsequent Detailed Design phase. Lighting requirements along the trail will be determined during the subsequent Detailed Design study.
You need to be signed in to comment in this Guest Book. Click here to Sign In or Register to get involved
Where will the path continue after Marlatts? Marlatts Rd ends at a dead end, leading to Open Space Conservation, EPA 1 and EPA 2 zoning boundaries. I have documented and photographed years of this area's forest and vernal pool maturity. The City has previously destroyed a known Chorus frog habitat when they issued a permit to bulldoze the corner of Richmond-Decew to build an SWMP. While your current plan has the excellent potential to convert the former railroad tracks into a maintained path, my concern is that the most direct connection from Marlatts to the Canal is through these mature forests and vernal pools.
Where will the path continue after Marlatts? Marlatts Rd ends at a dead end, leading to Open Space Conservation, EPA 1 and EPA 2 zoning boundaries. I have documented and photographed years of this area's forest and vernal pool maturity. The City has previously destroyed a known Chorus frog habitat when they issued a permit to bulldoze the corner of Richmond-Decew to build an SWMP. While your current plan has the excellent potential to convert the former railroad tracks into a maintained path, my concern is that the most direct connection from Marlatts to the Canal is through these mature forests and vernal pools.
